Quantity | Price |
---|---|
1 | $524.45 |
2 | $403.83 |
3+ | $374.98 |

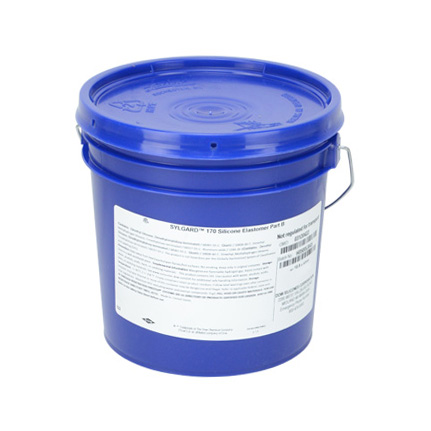

Dow SYLGARD™ 170 Silicone Elastomer is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides good flowability, moderate thermal conductivity, low viscosity, long working times, and flame resistance. 1:1 mix ratio. Part B, 4.9 kg Pail.
This is a Dow product repackaged by KitPackers, an authorized repackager of Dow.
Typical Use: | General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays. |
Brand: | SYLGARD |
Color: | Off-White |
Components: | 2 part |
Cure System: | Room Temperature/Heat |
Cure Time: | 24h @ 25 °C; 25min @ 70 °C; 15min @ 85 °C; 10min @ 100 °C |
Dielectric Strength: | 19 kV/mm |
Flash Point: | >101.1 °C |
Hardness: | 40 A |
Key Specifications: | MIL-PRF-23586F (Grade B2), UL 94 V-0 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. |
Mix Ratio: | 1:1 |
Service Temperature: | -45 to 200 °C |
Specific Gravity: | Part B: 1.33 @ 25 °C; Mixed: 1.38 |
Thermal Conductivity: | 0.39 W/mK |
Viscosity: | Part B: 2,000; Mixed: 3,400 |
Volume Resistivity: | 2.3 x 10^13 ohm-cm |
Working Time: | 15min @ room temperature |
