Part number: EP1200LV - B PL
Manufacturer SKU: EP1200LV B PL
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

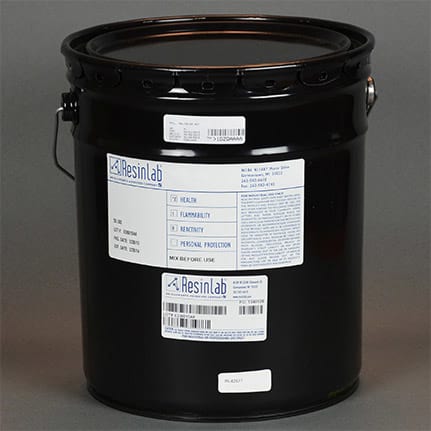

ResinLab EP1200LV Black is a lower viscosity version of EP1200. It is a two component, room temperature and heat curing, highly filled, casting resin that consists of an abrasive aluminum oxide filler. It offers high flexibility, medium viscosity, low CTE, and good thermal conductivity. Part B, 5 gal Pail.
| Typical Use: | Designed for applications requiring a high degree of thermal conductivity, flexibility and a low CTE. |
| Chemical Composition: | Epoxy |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 24 to 72h @ 25 °C; 2h @ 65 °C; 30min @ 100 °C |
| Dielectric Strength: | 500 V/mil |
| Elongation: | 30% |
| Flash Point: | >93 °C |
| Hardness: | 70 D |
| Mix Ratio: | 1:1 by volume; 1:1 by weight |
| Service Temperature: | -40 to 150 °C |
| Shear Strength: | 1,100 |
| Specific Gravity: | Part A: 1.55; Part B: 1.66; Mixed: 1.61 |
| Tensile Strength: | 1,300 psi |
| Thermal Conductivity: | 0.40 W/mK |
| Viscosity: | Part A: 7,500; Part B: 22,000; Mixed: 25,000 |
| Volume Resistivity: | 3.61 x 10^14 ohm-cm |
| Working Time: | 15 to 20min |
