Part number: UR6001 BLACK A PL
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.

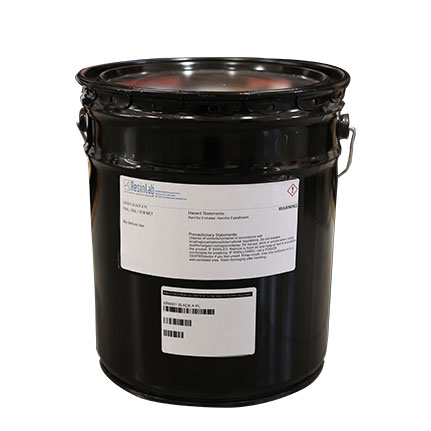

ResinLab UR6001 Urethane Encapsulant Black is a two component, room temperature curing resin that is used for side by side cartridges as well as bulk meter mix dispense equipment. Flame retardant and has a vertical burn rating of V-0 at 3mm thickness. Part A, 5 gal Pail.
| Typical Use: | Used in side by side cartridges as well as bulk meter mix dispense equipment. |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 72h @ 25 °C; 3h @ 65 °C; 1h @ 100 °C |
| Dielectric Strength: | 350 V/mil |
| Elongation: | 15% |
| Flash Point: | >120 °C |
| Hardness: | 60 A |
| Mix Ratio: | 2:1 by volume; 2.21:1 by weight |
| Service Temperature: | -40 to 120 °C |
| Specific Gravity: | Part A: 1.38; Part B: 1.25; Mixed: 1.34 |
| Thermal Conductivity: | 0.14 W/mK |
| Viscosity: | Part A: 24,000; Part B: 200; Mixed: 6,800 |
| Volume Resistivity: | 1.7 x 10^12 ohm-cm |
| Working Time: | 25min |
