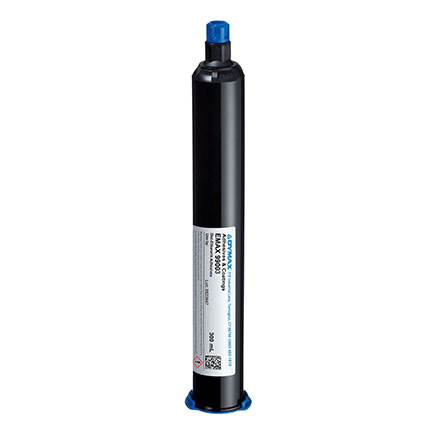

Part number: E-MAX 99003 300ML CARTRIDGE
Dymax EMAX 99003 Light Yellow is a UV/visible light curing, high-performance, reworkable conformal coating with secondary moisture cure. It contains no nonreactive solvents and features corrosion resistance, excellent thermal shock resistance, and bright blue fluorescing. Ideal for coating components on printed circuit boards and other electronic assembly applications. Coating thickness up to 0.203 mm. 300 mL Cartridge.
| Typical Use: | Used for coating printed circuit boards and other electronic assemblies. |
| Brand: | E-MAX |
| Chemical Composition: | Acrylated urethane |
| Color: | Light Yellow |
| Components: | 1 part |
| Cure System: | UV/Humidity |
| Cure Time: | UV/Humidity: 7d @ 25 °C or 2d @ 40 °C; Humidity Only: 2 to 3d @ 25 °C |
| Dielectric Strength: | 1,500 V/mil |
| Elongation: | 22% @ break |
| Flash Point: | 108 °C |
| Hardness: | 55 A @ UV cure only; 60 D @ UV cure and 15d |
| Tensile Strength: | 2,350 psi |
| Viscosity: | 600 |
| Volume Resistivity: | 4.39 x 10^14 ohm-cm |
