Part number: 3145 305ML CLR MIL-A-46146
Manufacturer SKU: 99180819

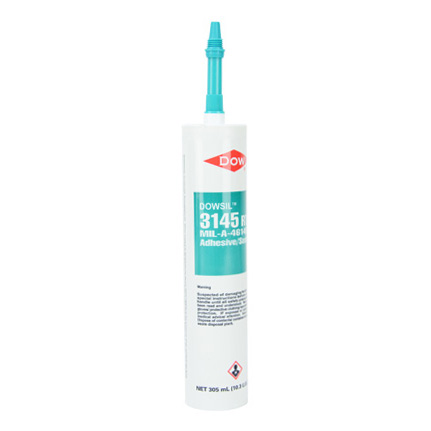

Dow DOWSIL™ 3145 RTV MIL-A-46146 Adhesive Sealant Clear is a one component, room temperature curing, silicone adhesive that is used for assembling print wire boards and sealing housings, modules, and electrical leads. It is non-flowing and has high elongation, tensile, and tear strength. 305 mL Cartridge.
| Typical Use: | Sealing openings in modules and housings; adding mechanical stability to individual components; assembly of components on PWBs; sealing in and around wires and electrical leads; yoke assembly. |
| Brand: | DOWSIL |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | RTV |
| Cure Time: | 48h @ room temperature |
| Dielectric Strength: | 500 V/mil |
| Elongation: | 680% |
| Hardness: | 47 A |
| Key Specifications: | MIL-A-46146 Rev. B, Amend. 3 Type I, Group II, CERT |
| Service Temperature: | 50 to 200 °C |
| Shear Strength: | 1,900 |
| Specific Gravity: | 1.12 @ 25 °C |
| Tack Free Time: | 63min |
| Tensile Strength: | 940 psi |
| Viscosity: | Non-flow |
If you require manufacturer certification, please request a quote.
-
