Part number: EB4212-B80
Manufacturer SKU: 2228726
Due to raw material shortages, this product is unavailable to purchase on the web. Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

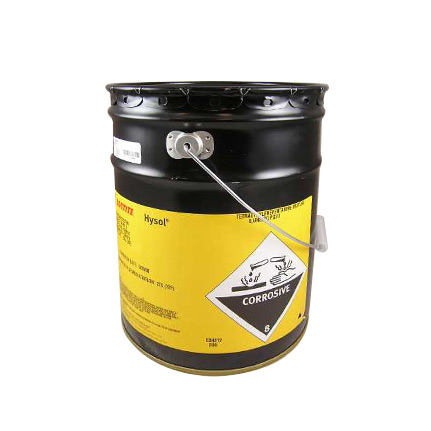

Henkel Loctite STYCAST EB4212 is a two component, non-abrasive epoxy casting system that has a long pot life and excellent handling properties. It has good thermal shock resistance and low exotherm, which makes it suitable for encapsulation of various components and modules. 5 gal Pail.
| Typical Use: | Used for the encapsulation of various components and modules. |
| Brand: | STYCAST |
| Chemical Composition: | Epoxy |
| Color: | Tan |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 36 to 48h @ 25 °C; 3h @ 60 °C |
| Dielectric Strength: | 50 kV/mm |
| Elongation: | 14% |
| Flash Point: | 101.6 °C |
| Hardness: | 75 D |
| Key Specifications: | UL-94, 94HB |
| Mix Ratio: | 100:100 by volume; 100:90 by weight |
| Specific Gravity: | 1.45 |
| Tensile Strength: | 2,250 psi |
| Thermal Conductivity: | 0.42 W/mK |
| Viscosity: | Part B: 9,000 @ 25 °C; Mixed: 25,000 @ 25 °C |
| Volume Resistivity: | 2 x 10^13 ohm-cm @ 25 °C; 4 x 10^9 ohm-cm @ 105 °C |
| Working Time: | 135 to 230min @ 25 °C |
-
